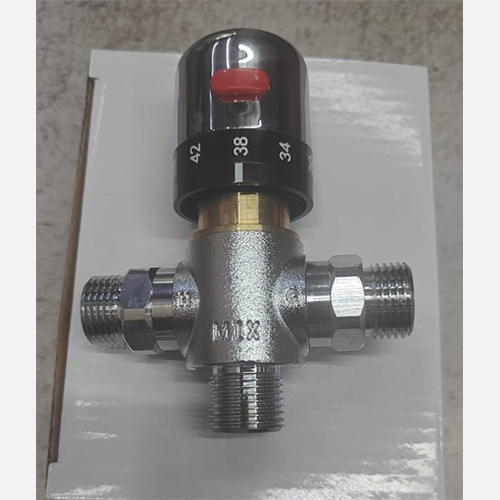

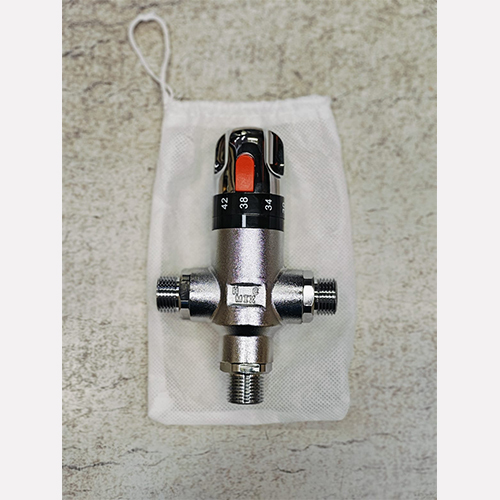

Thermostatic mixing valve size 15mm

Thermostatic mixing valve size 15mm Price And Quantity

• Minimum Order Quantity 10 Piece
• Price 4050 INR/Piece

• Standards EN1111, WRAS approved
• Maintenance Serviceable cartridge design
• Body Construction One-piece forged brass
• Minimum Working Pressure 0.2 bar
• Temperature Control Accuracy 2C
• Check Valves Integrated non-return valves
• Installation Position Horizontal or vertical
• Surface Finish Brass, chrome plated
• Flow Rate Up to 30 L/min at 3 bar

Thermostatic mixing valve size 15mm Product Specifications

• Power Non-electric, uses hydraulic pressure
• Sealing EPDM seals
• Valve Type Thermostatic
• Features Accurate temperature control, anti-scald protection, compact design, high flow rate
• Material DZR Brass
• Port Size 15mm (1/2 inch)
• Connection Type Compression and threaded compatibility
• Pressure Max working pressure 10 bar
• Valve Size 15mm
• Application Hot and cold water mixing for domestic and commercial plumbing, underfloor heating, and shower systems
• Type Thermostatic Mixing Valve
• Temperature Adjustment range 30C-65C, factory set at 38C
• Control System Self-acting thermostatic element
• Structure Three-way valve body
• Disc High-grade anti-scale protection
• Media Water
• Pin Brass spindle

• Standards EN1111, WRAS approved
• Maintenance Serviceable cartridge design
• Body Construction One-piece forged brass
• Minimum Working Pressure 0.2 bar
• Temperature Control Accuracy 2C
• Check Valves Integrated non-return valves
• Installation Position Horizontal or vertical
• Surface Finish Brass, chrome plated
• Flow Rate Up to 30 L/min at 3 bar

Thermostatic mixing valve size 15mm Trade Information

• Supply Ability 1000 Piece Per Month
• Delivery Time 3-5 Days
